Electrocardiogram (ECG)¶

Electrocardiogram (ECG/EKG) signals describe the electrical activity of the heart and are widely used to characterize cardiac rhythm and morphology. ECG processing pipelines typically include filtering, heartbeat detection, and heart rate estimation as foundational analysis steps.

API quick links: biosppy.signals.ecg | biosppy.signals.ecg.ecg()

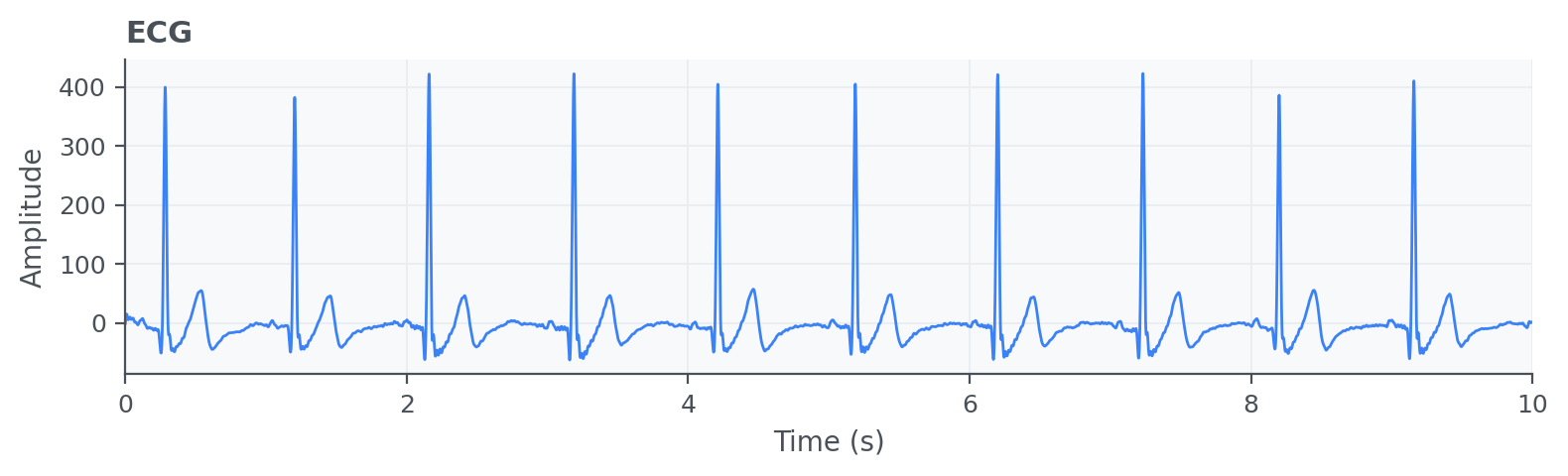

Example ECG signal plot.

Quick Usage with `biosppy.signals.ecg.ecg()`¶

import numpy as np
from biosppy.signals import ecg

signal = np.loadtxt("examples/ecg.txt")

out = ecg.ecg(signal=signal, sampling_rate=1000.0, show=False)
print(out.keys())

Inputs

signal: raw ECG samples.
sampling_rate: acquisition frequency in Hz.
units / path / show: optional label, save path, and plotting control.

Outputs

A ReturnTuple with processed ECG information, including time axis, filtered signal, detected R-peaks, and instantaneous heart-rate related outputs.
Use out.keys() to inspect the complete output set.

Example of ECG summary plot:

Example ECG signal summary plot.
